Note:
1. Screw specifications T0601-100mm, the first two T6 represents the diameter of the screw 6 mm, the second two represents the screw guide (pitch) 1 mm, the last 100 mm represents the effective stroke of the slide.
2. this slider contains 28 linear motors by default.
3. it can fold horizontal cross, Longmen, three axis and four axis.

Features

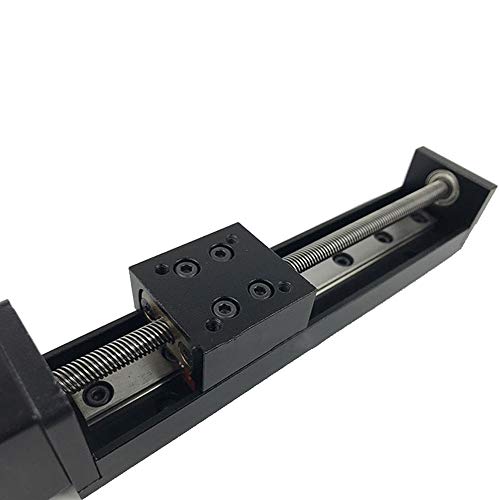

Name: 28 step motor trapezoidal wire guide slide
Travel Length: 100mm
Screw specification: T6*1
( We also have Screw specification T6*2 , T6*4 , T6*6 , T6*12 , if you need , please send us a message )
Screw precision: 0.1mm
Fastest speed: 40mm/s
Maximum load level: 3KG
Vertical maximum load: 1KG
Material: Aluminum alloy and stainless steel
Voltage: 24V
Motor current: 0.6A
Torque: 0.07NM
Step angle: 1.8 degrees
Motor size: 28*28*30mm

Package Included
1 x T0601-100 Stroke slide table (including motor)
